Protection Bellow V6-00079
€45.81
No tax
Lieferzeit: ca. 7-10 Tage

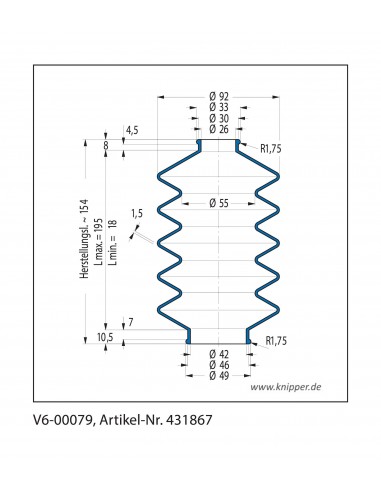

Protection Bellow V6-0079 (V6-79)
Material: 42 CR 764
Part-No. 431867
| Type | V6 00079 | ||
| Anschluss1: Connection1-Ø |
26 | mm | |
| Anschluss2: Connection2:-Ø |
42 | mm | |
| kleinster InnenØ: smallest inside-Ø |
55 | mm | |
| groesster AussenØ largest outside-Ø |
92 | mm | |
| Herstelllänge: manufactured length |
154 | mm | |
|
ausgezogene Länge: |
195 | mm | |
| gedrückte Länge: length min. |
18 | mm | |
| Faltenanzahl: No. of convolutions |
5 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-0079 (V6-79)
Material: 42 CR 764
Part-No. 431867
| Type | V6 00079 | ||
| Anschluss1: Connection1-Ø |
26 | mm | |
| Anschluss2: Connection2:-Ø |
42 | mm | |
| kleinster InnenØ: smallest inside-Ø |
55 | mm | |
| groesster AussenØ largest outside-Ø |
92 | mm | |
| Herstelllänge: manufactured length |
154 | mm | |
|
ausgezogene Länge: |
195 | mm | |
| gedrückte Länge: length min. |
18 | mm | |
| Faltenanzahl: No. of convolutions |
5 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
431867
2013-05-01
Data sheet
- Material
- 42 CR 764
- Type
- V6-00079
- Length min
- 18 mm
- Length max
- 195 mm
- smallest-inside
- 55 mm
- largest-outside
- 92 mm
- Connection1
- 26 mm
- Connection2
- 42 mm
- Manufactured length
- 154 mm
- Convolutions
- 5
- Material thickness
- 1,50 mm
Protection Bellow V6-0079 (V6-79)
Material: 42 CR 764
Part-No. 431867
| Type | V6 00079 | ||
| Anschluss1: Connection1-Ø |
26 | mm | |
| Anschluss2: Connection2:-Ø |
42 | mm | |
| kleinster InnenØ: smallest inside-Ø |
55 | mm | |
| groesster AussenØ largest outside-Ø |
92 | mm | |
| Herstelllänge: manufactured length |
154 | mm | |
|
ausgezogene Länge: |
195 | mm | |
| gedrückte Länge: length min. |
18 | mm | |
| Faltenanzahl: No. of convolutions |
5 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
