Protection Bellow V6-00099
€41.78
No tax
Lieferzeit: ca. 7-10 Tage

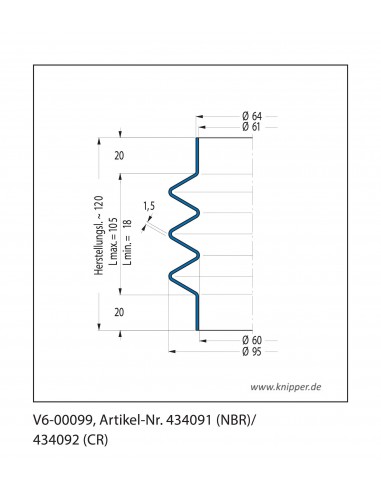

Protection Bellow V6-0099 (V6-99)
Material: 42 CR 764
Part-No. 434092
| Type | V6 00099 | ||
| Anschluss1: Connection1-Ø |
61 | mm | |
| Anschluss2: Connection2:-Ø |
61 | mm | |
| kleinster InnenØ: smallest inside-Ø |
60 | mm | |
| groesster AussenØ largest outside-Ø |
95 | mm | |
| Herstelllänge: manufactured length |
120 | mm | |
|
ausgezogene Länge: |
105 | mm | |
| gedrückte Länge: length min. |
18 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-0099 (V6-99)
Material: 42 CR 764
Part-No. 434092
| Type | V6 00099 | ||
| Anschluss1: Connection1-Ø |
61 | mm | |
| Anschluss2: Connection2:-Ø |
61 | mm | |
| kleinster InnenØ: smallest inside-Ø |
60 | mm | |
| groesster AussenØ largest outside-Ø |
95 | mm | |
| Herstelllänge: manufactured length |
120 | mm | |
|
ausgezogene Länge: |
105 | mm | |
| gedrückte Länge: length min. |
18 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
434092
2013-05-01
Data sheet
- Material
- 42 CR 764
- Type
- V6-00099
- Length min
- 18 mm
- Length max
- 105 mm
- smallest-inside
- 60 mm
- largest-outside
- 95 mm
- Connection1
- 61 mm
- Connection2
- 61 mm
- Manufactured length
- 120 mm
- Convolutions
- 3
- Material thickness
- 1,50 mm
Protection Bellow V6-0099 (V6-99)
Material: 42 CR 764
Part-No. 434092
| Type | V6 00099 | ||
| Anschluss1: Connection1-Ø |
61 | mm | |
| Anschluss2: Connection2:-Ø |
61 | mm | |
| kleinster InnenØ: smallest inside-Ø |
60 | mm | |
| groesster AussenØ largest outside-Ø |
95 | mm | |
| Herstelllänge: manufactured length |
120 | mm | |
|
ausgezogene Länge: |
105 | mm | |
| gedrückte Länge: length min. |
18 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
