Protection Bellow V6-00106
€56.72
No tax
Lieferzeit: ca. 7-10 Tage

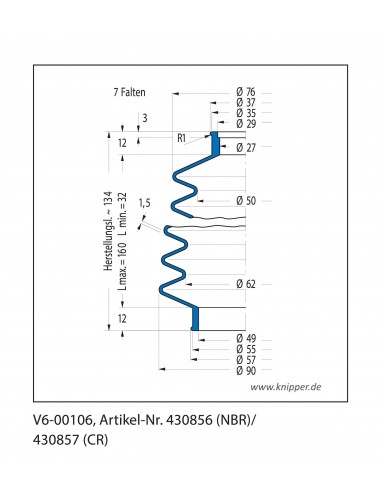

Protection Bellow V6-0106 (V6-106)
Material: 45 NBR 670
Part-No. 430856
| Type | V6 00106 | ||
| Anschluss1: Connection1-Ø |
27 | mm | |
| Anschluss2: Connection2:-Ø |
49 | mm | |
| kleinster InnenØ: smallest inside-Ø |
50 | mm | |
| groesster AussenØ largest outside-Ø |
90 | mm | |
| Herstelllänge: manufactured length |
134 | mm | |
|
ausgezogene Länge: |
160 | mm | |
| gedrückte Länge: length min. |
32 | mm | |
| Faltenanzahl: No. of convolutions |
7 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 45 NBR 670 |
Protection Bellow V6-0106 (V6-106)
Material: 45 NBR 670
Part-No. 430856
| Type | V6 00106 | ||
| Anschluss1: Connection1-Ø |
27 | mm | |
| Anschluss2: Connection2:-Ø |
49 | mm | |
| kleinster InnenØ: smallest inside-Ø |
50 | mm | |
| groesster AussenØ largest outside-Ø |
90 | mm | |
| Herstelllänge: manufactured length |
134 | mm | |
|
ausgezogene Länge: |
160 | mm | |
| gedrückte Länge: length min. |
32 | mm | |
| Faltenanzahl: No. of convolutions |
7 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 45 NBR 670 |
430856
2013-05-01
Data sheet
- Material
- 45 NBR 670
- Type
- V6-00106
- Length min
- 32 mm
- Length max
- 160 mm
- smallest-inside
- 50 mm
- largest-outside
- 90 mm
- Connection1
- 27 mm
- Connection2
- 49 mm
- Manufactured length
- 134 mm
- Convolutions
- 7
- Material thickness
- 1,50 mm
Protection Bellow V6-0106 (V6-106)
Material: 45 NBR 670
Part-No. 430856
| Type | V6 00106 | ||
| Anschluss1: Connection1-Ø |
27 | mm | |
| Anschluss2: Connection2:-Ø |
49 | mm | |
| kleinster InnenØ: smallest inside-Ø |
50 | mm | |
| groesster AussenØ largest outside-Ø |
90 | mm | |
| Herstelllänge: manufactured length |
134 | mm | |
|
ausgezogene Länge: |
160 | mm | |
| gedrückte Länge: length min. |
32 | mm | |
| Faltenanzahl: No. of convolutions |
7 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 45 NBR 670 |
