Protection Below V6-00242
€93.60
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

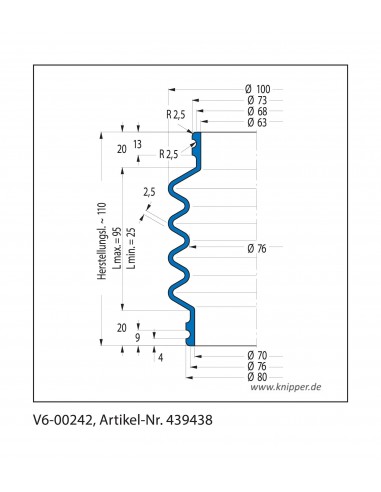

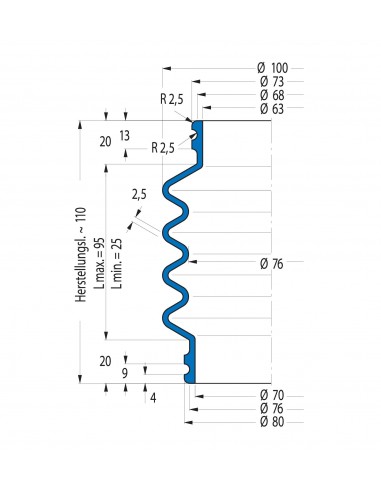

Protection Bellow V6-00242 (V6-242)
Material: 42 CR 764
Part-No. 439438
| Type | V6 00242 | ||
| Anschluss1: Connection1-Ø |
63 | mm | |
| Anschluss2: Connection2:-Ø |
70 | mm | |
| kleinster InnenØ: smallest inside-Ø |
76 | mm | |
| groesster AussenØ largest outside-Ø |
100 | mm | |
| Herstelllänge: manufactured length |
110 | mm | |
|
ausgezogene Länge: |
95 | mm | |
| gedrückte Länge: length min. |
25 | mm | |
| Faltenanzahl: No. of convolutions |
4 | ||
| Materialstärke: Material thickness |
2,50 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00242 (V6-242)
Material: 42 CR 764
Part-No. 439438
| Type | V6 00242 | ||
| Anschluss1: Connection1-Ø |
63 | mm | |
| Anschluss2: Connection2:-Ø |
70 | mm | |
| kleinster InnenØ: smallest inside-Ø |
76 | mm | |
| groesster AussenØ largest outside-Ø |
100 | mm | |
| Herstelllänge: manufactured length |
110 | mm | |
|
ausgezogene Länge: |
95 | mm | |
| gedrückte Länge: length min. |
25 | mm | |
| Faltenanzahl: No. of convolutions |
4 | ||
| Materialstärke: Material thickness |
2,50 | mm | |
| Material | 42 CR 764 |
439438
2013-05-01
Data sheet
- Material
- 42 CR 764
- Type
- V6-00242
- Length min
- 25 mm
- Length max
- 95 mm
- smallest-inside
- 76 mm
- largest-outside
- 100 mm
- Connection1
- 63 mm
- Connection2
- 70 mm
- Manufactured length
- 110 mm
- Convolutions
- 4
- Material thickness
- 2,50 mm
