Protection Bellow V6-00320
€52.46
No tax
Lieferzeit: ca. 7-10 Tage

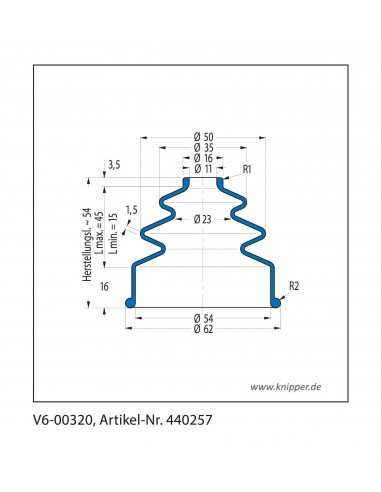

Protection Bellow V6-00320 (V6-320)
Material: 42 CR 764
Part-No. 440257
| Type | V6 00320 | ||
| Anschluss1: Connection1-Ø |
11 | mm | |
| Anschluss2: Connection2:-Ø |
54 | mm | |
| kleinster InnenØ: smallest inside-Ø |
23 | mm | |
| groesster AussenØ largest outside-Ø |
50 | mm | |
| Herstelllänge: manufactured length |
54 | mm | |
|
ausgezogene Länge: |
45 | mm | |
| gedrückte Länge: length min. |
15 | mm | |
| Faltenanzahl: No. of convolutions |
2 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00320 (V6-320)
Material: 42 CR 764
Part-No. 440257
| Type | V6 00320 | ||
| Anschluss1: Connection1-Ø |
11 | mm | |
| Anschluss2: Connection2:-Ø |
54 | mm | |
| kleinster InnenØ: smallest inside-Ø |
23 | mm | |
| groesster AussenØ largest outside-Ø |
50 | mm | |
| Herstelllänge: manufactured length |
54 | mm | |
|
ausgezogene Länge: |
45 | mm | |
| gedrückte Länge: length min. |
15 | mm | |
| Faltenanzahl: No. of convolutions |
2 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
440257
Data sheet
- Material
- 42 CR 764
- Type
- V6-00320
- Length min
- 15 mm
- Length max
- 45 mm
- smallest-inside
- 23 mm
- largest-outside
- 50 mm
- Connection1
- 11 mm
- Connection2
- 54 mm
- Manufactured length
- 54 mm
- Convolutions
- 2
- Material thickness
- 1,50 mm
Protection Bellow V6-00320 (V6-320)
Material: 42 CR 764
Part-No. 440257
| Type | V6 00320 | ||
| Anschluss1: Connection1-Ø |
11 | mm | |
| Anschluss2: Connection2:-Ø |
54 | mm | |
| kleinster InnenØ: smallest inside-Ø |
23 | mm | |
| groesster AussenØ largest outside-Ø |
50 | mm | |
| Herstelllänge: manufactured length |
54 | mm | |
|
ausgezogene Länge: |
45 | mm | |
| gedrückte Länge: length min. |
15 | mm | |
| Faltenanzahl: No. of convolutions |
2 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
