Protection Bellow V6-00328
€44.51
No tax
Lieferzeit: ca. 7-10 Tage

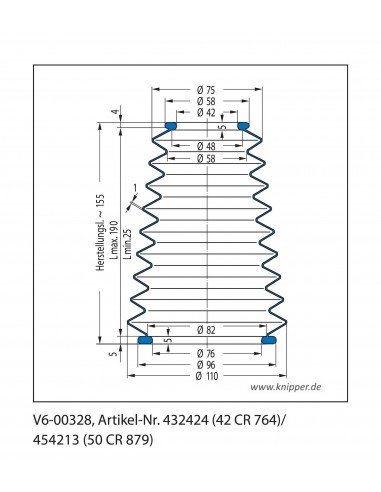

Protection Bellow V6-00328 (V6-328)
Material: 42 CR 764
Part-No. 432424
| Type | V6 00328 | ||
| Anschluss1: Connection1-Ø |
42 | mm | |
| Anschluss2: Connection2:-Ø |
76 | mm | |
| kleinster InnenØ: smallest inside-Ø |
58 | mm | |
| groesster AussenØ largest outside-Ø |
110 | mm | |
| Herstelllänge: manufactured length |
155 | mm | |
|
ausgezogene Länge: |
190 | mm | |
| gedrückte Länge: length min. |
25 | mm | |
| Faltenanzahl: No. of convolutions |
9 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00328 (V6-328)
Material: 42 CR 764
Part-No. 432424
| Type | V6 00328 | ||
| Anschluss1: Connection1-Ø |
42 | mm | |
| Anschluss2: Connection2:-Ø |
76 | mm | |
| kleinster InnenØ: smallest inside-Ø |
58 | mm | |
| groesster AussenØ largest outside-Ø |
110 | mm | |
| Herstelllänge: manufactured length |
155 | mm | |
|
ausgezogene Länge: |
190 | mm | |
| gedrückte Länge: length min. |
25 | mm | |
| Faltenanzahl: No. of convolutions |
9 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
432424
Data sheet
- Material
- 42 CR 764
- Type
- V6-00328
- Length min
- 25 mm
- Length max
- 190 mm
- smallest-inside
- 58 mm
- largest-outside
- 110 mm
- Connection1
- 42 mm
- Connection2
- 76 mm
- Manufactured length
- 155 mm
- Convolutions
- 9
- Material thickness
- 1 mm
Protection Bellow V6-00328 (V6-328)
Material: 42 CR 764
Part-No. 432424
| Type | V6 00328 | ||
| Anschluss1: Connection1-Ø |
42 | mm | |
| Anschluss2: Connection2:-Ø |
76 | mm | |
| kleinster InnenØ: smallest inside-Ø |
58 | mm | |
| groesster AussenØ largest outside-Ø |
110 | mm | |
| Herstelllänge: manufactured length |
155 | mm | |
|
ausgezogene Länge: |
190 | mm | |
| gedrückte Länge: length min. |
25 | mm | |
| Faltenanzahl: No. of convolutions |
9 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
