Protection Bellow V6-00530
€70.96
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

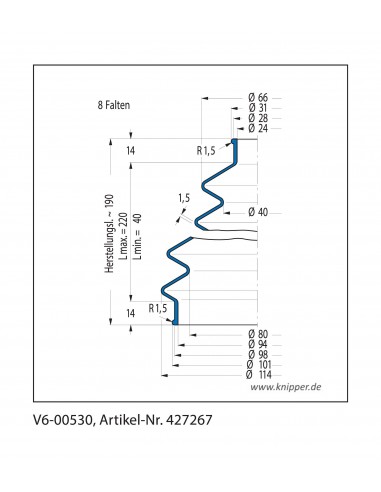

Protection Bellow V6-00530 (V6-530)
Material: 42 CR 764
Part-No. 427267
| Type | V6 00530 | ||
| Anschluss1: Connection1-Ø |
24 | mm | |
| Anschluss2: Connection2:-Ø |
94 | mm | |
| kleinster InnenØ: smallest inside-Ø |
40 | mm | |
| groesster AussenØ largest outside-Ø |
114 | mm | |
| Herstelllänge: manufactured length |
190 | mm | |
|
ausgezogene Länge: |
220 | mm | |
| gedrückte Länge: length min. |
40 | mm | |
| Faltenanzahl: No. of convolutions |
8 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00530 (V6-530)
Material: 42 CR 764
Part-No. 427267
| Type | V6 00530 | ||
| Anschluss1: Connection1-Ø |
24 | mm | |
| Anschluss2: Connection2:-Ø |
94 | mm | |
| kleinster InnenØ: smallest inside-Ø |
40 | mm | |
| groesster AussenØ largest outside-Ø |
114 | mm | |
| Herstelllänge: manufactured length |
190 | mm | |
|
ausgezogene Länge: |
220 | mm | |
| gedrückte Länge: length min. |
40 | mm | |
| Faltenanzahl: No. of convolutions |
8 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 42 CR 764 |
427267
Data sheet
- Material
- 42 CR 764
- Type
- V6-00530
- Length min
- 40 mm
- Length max
- 220 mm
- smallest-inside
- 40 mm
- largest-outside
- 114 mm
- Connection1
- 24 mm
- Connection2
- 94 mm
- Manufactured length
- 190 mm
- Convolutions
- 8
- Material thickness
- 1,50 mm
