Protection Bellow V6-00616
€59.85
No tax
Lieferzeit: ca. 7-10 Tage

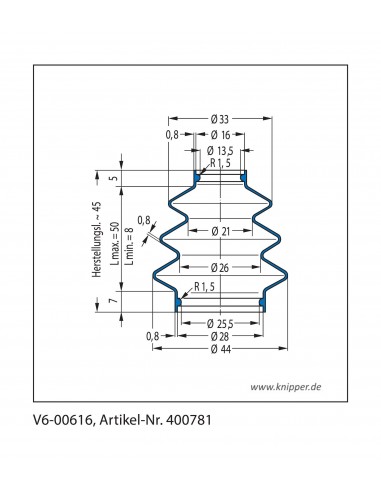

Protection Bellow V6-00616 (V6-616)
Material: 50 CR 879
Part-No. 400781
| Type | V6 00616 | ||
| Anschluss1: Connection1-Ø |
13,5 | mm | |
| Anschluss2: Connection2:-Ø |
25,5 | mm | |
| kleinster InnenØ: smallest inside-Ø |
21 | mm | |
| groesster AussenØ largest outside-Ø |
44 | mm | |
| Herstelllänge: manufactured length |
45 | mm | |
|
ausgezogene Länge: |
50 | mm | |
| gedrückte Länge: length min. |
8 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
0,80 | mm | |
| Material | 50 CR 879 |
Protection Bellow V6-00616 (V6-616)
Material: 50 CR 879
Part-No. 400781
| Type | V6 00616 | ||
| Anschluss1: Connection1-Ø |
13,5 | mm | |
| Anschluss2: Connection2:-Ø |
25,5 | mm | |
| kleinster InnenØ: smallest inside-Ø |
21 | mm | |
| groesster AussenØ largest outside-Ø |
44 | mm | |
| Herstelllänge: manufactured length |
45 | mm | |
|
ausgezogene Länge: |
50 | mm | |
| gedrückte Länge: length min. |
8 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
0,80 | mm | |
| Material | 50 CR 879 |
400781
Data sheet
- Material
- 50 CR 879
- Type
- V6-00616
- Length min
- 8 mm
- Length max
- 50 mm
- smallest-inside
- 21 mm
- largest-outside
- 44 mm
- Connection1
- 13,5 mm
- Connection2
- 25,5 mm
- Manufactured length
- 45 mm
- Convolutions
- 3
- Material thickness
- 0,80 mm
Protection Bellow V6-00616 (V6-616)
Material: 50 CR 879
Part-No. 400781
| Type | V6 00616 | ||
| Anschluss1: Connection1-Ø |
13,5 | mm | |
| Anschluss2: Connection2:-Ø |
25,5 | mm | |
| kleinster InnenØ: smallest inside-Ø |
21 | mm | |
| groesster AussenØ largest outside-Ø |
44 | mm | |
| Herstelllänge: manufactured length |
45 | mm | |
|
ausgezogene Länge: |
50 | mm | |
| gedrückte Länge: length min. |
8 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
0,80 | mm | |
| Material | 50 CR 879 |
