Protection Bellow V6-00619
€58.37
No tax
Lieferzeit: ca. 7-10 Tage

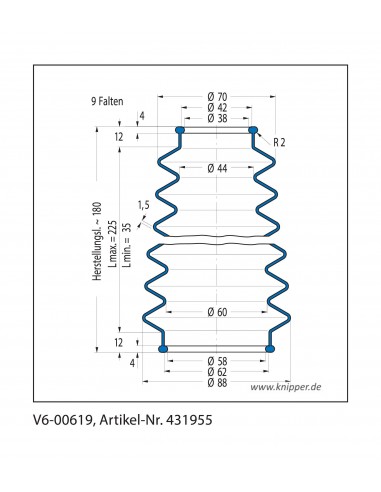

Protection Bellow V6-00619 (V6-619)
Material: 42 CR 764
Part-No. 431955
| Type | V6 00619 | ||
| Anschluss1: Connection1-Ø | 38 | mm | |
| Anschluss2: Connection2:-Ø | 58 | mm | |
| kleinster InnenØ: smallest inside-Ø | 44 | mm | |
| groesster AussenØ largest outside-Ø | 88 | mm | |
| Herstelllänge: manufactured length | 180 | mm | |
ausgezogene Länge: | 225 | mm | |
| gedrückte Länge: length min. | 35 | mm | |
| Faltenanzahl: No. of convolutions | 9 | ||
| Materialstärke: Material thickness | 1,50 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00619 (V6-619)
Material: 42 CR 764
Part-No. 431955
| Type | V6 00619 | ||
| Anschluss1: Connection1-Ø | 38 | mm | |
| Anschluss2: Connection2:-Ø | 58 | mm | |
| kleinster InnenØ: smallest inside-Ø | 44 | mm | |
| groesster AussenØ largest outside-Ø | 88 | mm | |
| Herstelllänge: manufactured length | 180 | mm | |
ausgezogene Länge: | 225 | mm | |
| gedrückte Länge: length min. | 35 | mm | |
| Faltenanzahl: No. of convolutions | 9 | ||
| Materialstärke: Material thickness | 1,50 | mm | |
| Material | 42 CR 764 |
431955
Data sheet
- Material
- 42 CR 764
- Type
- V6-00619
- Length min
- 35 mm
- Length max
- 225 mm
- smallest-inside
- 44 mm
- largest-outside
- 88 mm
- Connection1
- 38 mm
- Connection2
- 58 mm
- Manufactured length
- 180 mm
- Convolutions
- 9
- Material thickness
- 1,50 mm
Protection Bellow V6-00619 (V6-619)
Material: 42 CR 764
Part-No. 431955
| Type | V6 00619 | ||
| Anschluss1: Connection1-Ø | 38 | mm | |
| Anschluss2: Connection2:-Ø | 58 | mm | |
| kleinster InnenØ: smallest inside-Ø | 44 | mm | |
| groesster AussenØ largest outside-Ø | 88 | mm | |
| Herstelllänge: manufactured length | 180 | mm | |
ausgezogene Länge: | 225 | mm | |
| gedrückte Länge: length min. | 35 | mm | |
| Faltenanzahl: No. of convolutions | 9 | ||
| Materialstärke: Material thickness | 1,50 | mm | |
| Material | 42 CR 764 |
