Protection Bellow V6-00716
€44.03
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

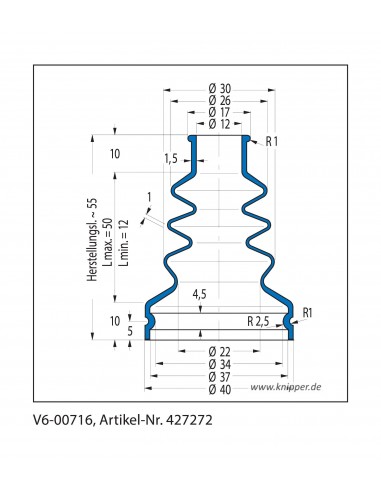

Protection Bellow V6-00716 (V6-716)
Material: 42 CR 764
Part-No. 427272
| Type | V6 00716 | ||
| Anschluss1: Connection1-Ø |
12 | mm | |
| Anschluss2: Connection2:-Ø |
34 | mm | |
| kleinster InnenØ: smallest inside-Ø |
12 | mm | |
| groesster AussenØ largest outside-Ø |
30 | mm | |
| Herstelllänge: manufactured length |
55 | mm | |
|
ausgezogene Länge: |
50 | mm | |
| gedrückte Länge: length min. |
12 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00716 (V6-716)
Material: 42 CR 764
Part-No. 427272
| Type | V6 00716 | ||
| Anschluss1: Connection1-Ø |
12 | mm | |
| Anschluss2: Connection2:-Ø |
34 | mm | |
| kleinster InnenØ: smallest inside-Ø |
12 | mm | |
| groesster AussenØ largest outside-Ø |
30 | mm | |
| Herstelllänge: manufactured length |
55 | mm | |
|
ausgezogene Länge: |
50 | mm | |
| gedrückte Länge: length min. |
12 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
427272
Data sheet
- Material
- 42 CR 764
- Type
- V6-00716
- Length min
- 12 mm
- Length max
- 50 mm
- smallest-inside
- 12 mm
- largest-outside
- 30 mm
- Connection1
- 12 mm
- Connection2
- 34 mm
- Manufactured length
- 55 mm
- Convolutions
- 3
- Material thickness
- 1 mm
Protection Bellow V6-00716 (V6-716)
Material: 42 CR 764
Part-No. 427272
| Type | V6 00716 | ||
| Anschluss1: Connection1-Ø |
12 | mm | |
| Anschluss2: Connection2:-Ø |
34 | mm | |
| kleinster InnenØ: smallest inside-Ø |
12 | mm | |
| groesster AussenØ largest outside-Ø |
30 | mm | |
| Herstelllänge: manufactured length |
55 | mm | |
|
ausgezogene Länge: |
50 | mm | |
| gedrückte Länge: length min. |
12 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
