Protection Bellow V6-00723
€187.98
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

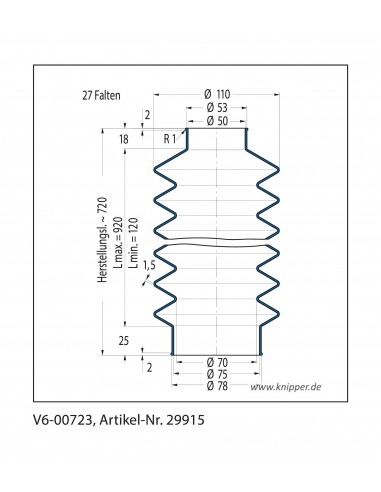

Protection Bellow V6-00723 (V6-723)
Material: 45 NBR 670
Part-No. 29915
| Type | V6 00723 | ||
| Anschluss1: Connection1-Ø |
50 | mm | |
| Anschluss2: Connection2:-Ø |
75 | mm | |
| kleinster InnenØ: smallest inside-Ø |
70 | mm | |
| groesster AussenØ largest outside-Ø |
110 | mm | |
| Herstelllänge: manufactured length |
720 | mm | |
|
ausgezogene Länge: |
920 | mm | |
| gedrückte Länge: length min. |
120 | mm | |
| Faltenanzahl: No. of convolutions |
27 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 45 CR 670 |
Protection Bellow V6-00723 (V6-723)
Material: 45 NBR 670
Part-No. 29915
| Type | V6 00723 | ||
| Anschluss1: Connection1-Ø |
50 | mm | |
| Anschluss2: Connection2:-Ø |
75 | mm | |
| kleinster InnenØ: smallest inside-Ø |
70 | mm | |
| groesster AussenØ largest outside-Ø |
110 | mm | |
| Herstelllänge: manufactured length |
720 | mm | |
|
ausgezogene Länge: |
920 | mm | |
| gedrückte Länge: length min. |
120 | mm | |
| Faltenanzahl: No. of convolutions |
27 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 45 CR 670 |
29915
2013-05-01
Data sheet
- Material
- 45 NBR 670
- Type
- V6-00723
- Length min
- 120 mm
- Length max
- 920 mm
- smallest-inside
- 70 mm
- largest-outside
- 110 mm
- Connection1
- 50 mm
- Connection2
- 75 mm
- Manufactured length
- 720 mm
- Convolutions
- 27
- Material thickness
- 1,50 mm
Protection Bellow V6-00723 (V6-723)
Material: 45 NBR 670
Part-No. 29915
| Type | V6 00723 | ||
| Anschluss1: Connection1-Ø |
50 | mm | |
| Anschluss2: Connection2:-Ø |
75 | mm | |
| kleinster InnenØ: smallest inside-Ø |
70 | mm | |
| groesster AussenØ largest outside-Ø |
110 | mm | |
| Herstelllänge: manufactured length |
720 | mm | |
|
ausgezogene Länge: |
920 | mm | |
| gedrückte Länge: length min. |
120 | mm | |
| Faltenanzahl: No. of convolutions |
27 | ||
| Materialstärke: Material thickness |
1,50 | mm | |
| Material | 45 CR 670 |
