Protection Bellow V6-00729
€39.21
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

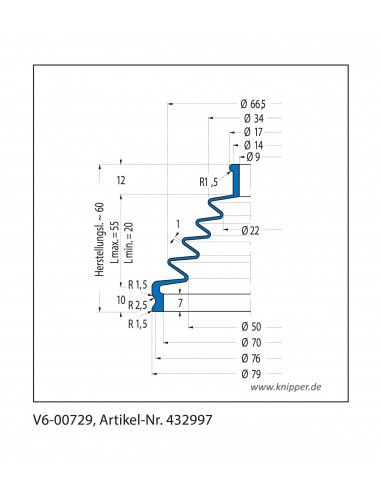

Protection Bellow V6-00729 (V6-729)
Material: 42 CR 764
Part-No. 432997
| Type | V6 00729 | ||
| Anschluss1: Connection1-Ø |
9 | mm | |
| Anschluss2: Connection2:-Ø |
70 | mm | |
| kleinster InnenØ: smallest inside-Ø |
22 | mm | |
| groesster AussenØ largest outside-Ø |
66,5 | mm | |
| Herstelllänge: manufactured length |
60 | mm | |
|
ausgezogene Länge: |
55 | mm | |
| gedrückte Länge: length min. |
20 | mm | |
| Faltenanzahl: No. of convolutions |
4 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00729 (V6-729)
Material: 42 CR 764
Part-No. 432997
| Type | V6 00729 | ||
| Anschluss1: Connection1-Ø |
9 | mm | |
| Anschluss2: Connection2:-Ø |
70 | mm | |
| kleinster InnenØ: smallest inside-Ø |
22 | mm | |
| groesster AussenØ largest outside-Ø |
66,5 | mm | |
| Herstelllänge: manufactured length |
60 | mm | |
|
ausgezogene Länge: |
55 | mm | |
| gedrückte Länge: length min. |
20 | mm | |
| Faltenanzahl: No. of convolutions |
4 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
49312520
Data sheet
- Material
- 42 CR 764
- Type
- V6-00729
- Length min
- 20 mm
- Length max
- 55 mm
- smallest-inside
- 22 mm
- largest-outside
- 66,5 mm
- Connection1
- 9 mm
- Connection2
- 70 mm
- Manufactured length
- 60 mm
- Convolutions
- 4
- Material thickness
- 1 mm
