Protection Bellow V6-00821
€70.40
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

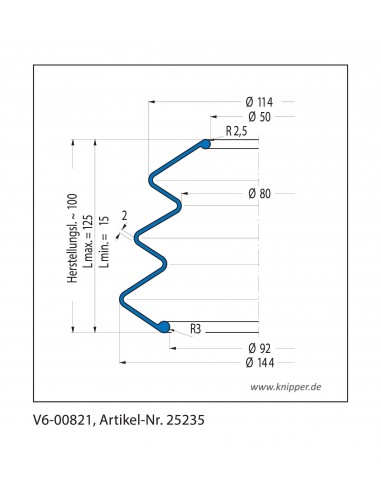

Protection Bellow V6-00821 (V6-821)
Material: 42 CR 764
Part-No. 25235
| Type | V6 00821 | ||
| Anschluss1: Connection1-Ø |
50 | mm | |
| Anschluss2: Connection2:-Ø |
92 | mm | |
| kleinster InnenØ: smallest inside-Ø |
80 | mm | |
| groesster AussenØ largest outside-Ø |
144 | mm | |
| Herstelllänge: manufactured length |
100 | mm | |
|
ausgezogene Länge: |
125 | mm | |
| gedrückte Länge: length min. |
15 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
2 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00821 (V6-821)
Material: 42 CR 764
Part-No. 25235
| Type | V6 00821 | ||
| Anschluss1: Connection1-Ø |
50 | mm | |
| Anschluss2: Connection2:-Ø |
92 | mm | |
| kleinster InnenØ: smallest inside-Ø |
80 | mm | |
| groesster AussenØ largest outside-Ø |
144 | mm | |
| Herstelllänge: manufactured length |
100 | mm | |
|
ausgezogene Länge: |
125 | mm | |
| gedrückte Länge: length min. |
15 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
2 | mm | |
| Material | 42 CR 764 |
25235
Data sheet
- Material
- 42 CR 764
- Type
- V6-00821
- Length min
- 15 mm
- Length max
- 125 mm
- smallest-inside
- 80 mm
- largest-outside
- 125 mm
- Connection1
- 50 mm
- Connection2
- 92 mm
- Manufactured length
- 100 mm
- Convolutions
- 3
- Material thickness
- 2 mm
Protection Bellow V6-00821 (V6-821)
Material: 42 CR 764
Part-No. 25235
| Type | V6 00821 | ||
| Anschluss1: Connection1-Ø |
50 | mm | |
| Anschluss2: Connection2:-Ø |
92 | mm | |
| kleinster InnenØ: smallest inside-Ø |
80 | mm | |
| groesster AussenØ largest outside-Ø |
144 | mm | |
| Herstelllänge: manufactured length |
100 | mm | |
|
ausgezogene Länge: |
125 | mm | |
| gedrückte Länge: length min. |
15 | mm | |
| Faltenanzahl: No. of convolutions |
3 | ||
| Materialstärke: Material thickness |
2 | mm | |
| Material | 42 CR 764 |
