Protection Bellow V6-00925
€91.62
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

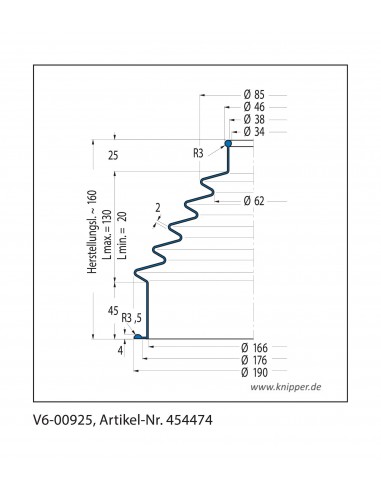

Protection Bellow V6-00925 (V6-925)
Material: 42 CR 764
Part-No. 454474
| Type | V6 00925 | ||
| Anschluss1: Connection1-Ø |
34 | mm | |
| Anschluss2: Connection2:-Ø |
166 | mm | |
| kleinster InnenØ: smallest inside-Ø |
62 | mm | |
| groesster AussenØ largest outside-Ø |
190 | mm | |
| Herstelllänge: manufactured length |
160 | mm | |
|
ausgezogene Länge: |
130 | mm | |
| gedrückte Länge: length min. |
20 | mm | |
| Faltenanzahl: No. of convolutions |
5 | ||
| Materialstärke: Material thickness |
2 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-00925 (V6-925)
Material: 42 CR 764
Part-No. 454474
| Type | V6 00925 | ||
| Anschluss1: Connection1-Ø |
34 | mm | |
| Anschluss2: Connection2:-Ø |
166 | mm | |
| kleinster InnenØ: smallest inside-Ø |
62 | mm | |
| groesster AussenØ largest outside-Ø |
190 | mm | |
| Herstelllänge: manufactured length |
160 | mm | |
|
ausgezogene Länge: |
130 | mm | |
| gedrückte Länge: length min. |
20 | mm | |
| Faltenanzahl: No. of convolutions |
5 | ||
| Materialstärke: Material thickness |
2 | mm | |
| Material | 42 CR 764 |
454474
Data sheet
- Material
- 42 CR 764
- Type
- V6-00925
- Length min
- 20 mm
- Length max
- 130 mm
- smallest-inside
- 62 mm
- largest-outside
- 190 mm
- Connection1
- 34 mm
- Connection2
- 166 mm
- Manufactured length
- 160 mm
- Convolutions
- 5
- Material thickness
- 2 mm
