Protection Bellow V6-01080
€78.86
No tax
Lieferzeit: ca. 7-8 Wochen, Bahnartikel ca. 6 Monate

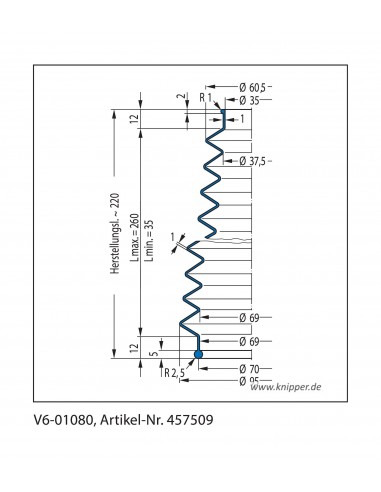

Protection Bellow V6-01080 (V6-1080)
Material: 42 CR 764
Part-No. 457509
| Type | V6 01080 | ||
| Anschluss1: Connection1-Ø |
35 | mm | |
| Anschluss2: Connection2:-Ø |
65 | mm | |
| kleinster InnenØ: smallest inside-Ø |
37,5 | mm | |
| groesster AussenØ largest outside-Ø |
95 | mm | |
| Herstelllänge: manufactured length |
220 | mm | |
|
ausgezogene Länge: |
260 | mm | |
| gedrückte Länge: length min. |
35 | mm | |
| Faltenanzahl: No. of convolutions |
15 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
Protection Bellow V6-01080 (V6-1080)
Material: 42 CR 764
Part-No. 457509
| Type | V6 01080 | ||
| Anschluss1: Connection1-Ø |
35 | mm | |
| Anschluss2: Connection2:-Ø |
65 | mm | |
| kleinster InnenØ: smallest inside-Ø |
37,5 | mm | |
| groesster AussenØ largest outside-Ø |
95 | mm | |
| Herstelllänge: manufactured length |
220 | mm | |
|
ausgezogene Länge: |
260 | mm | |
| gedrückte Länge: length min. |
35 | mm | |
| Faltenanzahl: No. of convolutions |
15 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
457509
Data sheet
- Material
- 42 CR 764
- Type
- V6-01080
- Length min
- 35 mm
- Length max
- 260 mm
- smallest-inside
- 37,5 mm
- largest-outside
- 95 mm
- Connection1
- 35 mm
- Connection2
- 65 mm
- Manufactured length
- 220 mm
- Convolutions
- 15
- Material thickness
- 1 mm
Protection Bellow V6-01080 (V6-1080)
Material: 42 CR 764
Part-No. 457509
| Type | V6 01080 | ||
| Anschluss1: Connection1-Ø |
35 | mm | |
| Anschluss2: Connection2:-Ø |
65 | mm | |
| kleinster InnenØ: smallest inside-Ø |
37,5 | mm | |
| groesster AussenØ largest outside-Ø |
95 | mm | |
| Herstelllänge: manufactured length |
220 | mm | |
|
ausgezogene Länge: |
260 | mm | |
| gedrückte Länge: length min. |
35 | mm | |
| Faltenanzahl: No. of convolutions |
15 | ||
| Materialstärke: Material thickness |
1 | mm | |
| Material | 42 CR 764 |
