Alchem 6375

6375
Últimas unidades en stock
449,82 € impuesto incluido

(Precio por una cantidad mínima de 2)

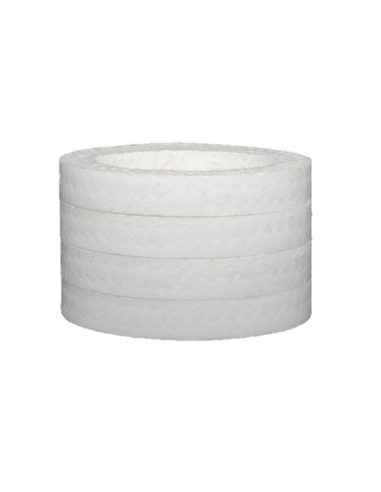

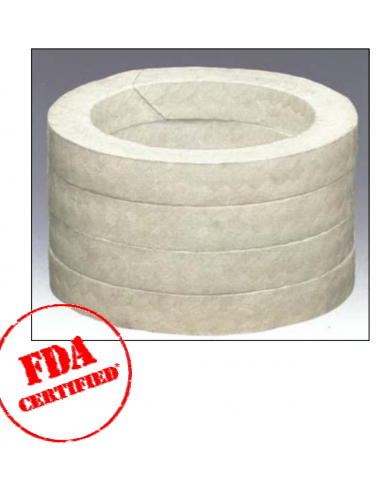

ALCHEM 6375 Universal chemical valve packings.

ALCHEM is manufactured from pure PTFE yarn with an additional PTFE impregnation, ensuring excellent chemical resistance. Its high density and tight braid structure ensure very low leakage performance. The packing has a high degree of form stability and a low compressibility which makes it also suitable for plunger pump applications.

ALCHEM ST material is approved for use in food, drinking water and oxygen applications.

Packungsquerschnitt

La cantidad mínima en el pedido de compra para el producto es 2.

Application Limits
P 500 bar
250 bar *
7250 psi
3625 psi *
T          -200..+280(C               -328..+536(F
V 2 m/s 400 ft/min
pH 0..14 0..14
* Installation with end rings


Media:
All chemicals including concentrated hot acids and lyes.


(Exceptions: molten alkali metals, fluorine and some fluorine compounds).

Note: This packing is certified by the Fraunhofer-Institute for process engineering and packaging as suitable for use in food processing machinery according to FDA US 21 CFR 170.3 (i) and to article 3 of the EU directive 1935/2004.

 Particularly tight braid and dense structure
  Very low leakage rates
 High degree of form stability and compressibility
  Very low setting rates
 Low soluble chloride content   Suitable for nuclear applications
 White colour   No risk of colour contamination



Also available in dieformed rings and pre-cut lengths

mm inch G/m M/kg kg/Box Reference no  In Stock
3 1/8 16 63.5 1 24107749
4 28 35.7 1 24107750 *
5 3/16 44 22.9 1 24107751 *
6   63 15.9 1 24107752 *
  ¼ 72
14.0
1 24115712
8 5/16 112 8.9 2 24107753 *
3/8 159 6.3 2 24117570
10 175 5.7 2 24107754 *
12 252 4.0 3 24107755 *
½ 282 3.5 3 24107756 *
14 9/16 343 2.9 3 24116248 *
15 394 2.5 3 24116340
16 5/8 448 2.2 3 24107757 *
18 567 1.8 3 24117869
19 ¾ 632 1.6 3 24192581
20 700 1.4 5 24115579 *
22 7/8 847 1.2 5 24115580
25 1 1094 0.9 10 24121883 *



Einsatz für Ventile
ja
nein
Temp. min.

-10
-18 °C
-20 °C
-30
-40
-46 °C
-50
-60
-100
-200
107
Temp. max.
+40 °C
+50 °C
+66 °C
+70 °C
+80 °C
+121 °C
+200 °C
+260 °C
+316 °C
100
120
150
160
160
250
280
300
pH-Wert min.
pH 0
pH-Wert max.
pH 14
