Carbosteam 6550

Riferimento 6550

Product available for orders

3.665,20 € tasse incluse

(Prezzo per quantità minima di 10)

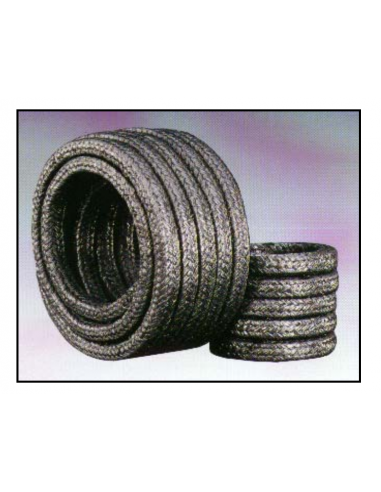

CARBOSTEAM 6550 High temperature valve packing

CARBOSTEAM is made of flexible carbon yarns and a special graphite-based impregnation. Thanks to its excellent thermal stability CARBOSTEAM is widely used in high temperature steam applications.

Because of its high pressure and extrusion resistance CARBOSTEAM is ideally used as end rings for GRAFIFLEX.

Packungsquerschnitt

La quantità minima ordinabile per questo prodotto è 10.

CARBOSTEAM 6550 High temperature valve packing

Application Limits

300 bar

 4350 psi

30°..+400°  C 1

-30°..+550°  C 2

-22°..+750°F 1

-30°..+1022° F 2

0...14

1 most media and air 2 steam

Media
Hot Water, hot air, steam, acids and alkalies.


Exceptions

Heavily oxidizing acids such as hot sulphuric acid and nitric acid.

Thermally stable carbon yarn and impregnation	Very high temperature resistance
High graphite content in impregnation	Reduced friction, longer service life
High strength carbon yarns	Used as anti-extrusion and wiper end rings with GRAFIFLEX or G-SPEZIAL

Also available in pre-cut lengths

mm	inch	G/m	M/kg	Kg/box	Reference no	In stock
3	1/8	10	101.01	1	24199354
4		18	56.82	1	24196161
5	3/16	28	36.36	1	24191670
6		40	25.25	1	24196568
	¼	45	22.2	1	24199357
8	5/16	70	14.20	2	24191671	*
	3/8	89	11.22	2	24199361
10		110	9.09	2	24191672	*
12		158	6.31	3	24190391	*
	½	177	5.60	3	24199363
14	9/16	216	4.64	3	24197176
15		248	4.04	3	24216138
16	5/8	282	3.55	3	24195492	*
18		356	2.81	3	24199366
19	¾	397	2.52	3	24315375
20		440	2.27	5	24199368
22	7/8	532	1.92	5	24290307
25	1	688	1.45	10	24199373

Einsatz für Ventile: ja
Temp. min.: -30
Temp. max.: 550
pH-Wert min.: pH 0
pH-Wert max.: pH 14

6550 Carbosteam dt.

Scarica (68.18k)

6550 Carbosteam engl.

Scarica (56.28k)
