Soffietto V6-00236

426319
Ultimi articoli in magazzino
48,83 € tasse incluse
Lieferzeit: 1-2 Werktage

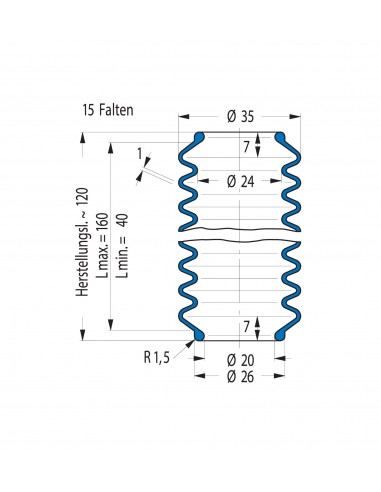

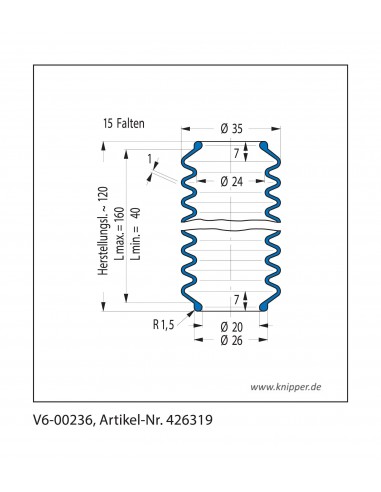

Soffietto V6-00236 (V6-236)

Materiale: 42 CR 764

Part-No.  426319

Type      V6 00236

Anschluss1:
Connection1-Ø
  20 mm

Anschluss2:
Connection2:-Ø
  20 mm

kleinster InnenØ:
smallest inside-Ø
  24 mm

groesster AussenØ
largest outside-Ø
  35 mm

Herstelllänge:
manufactured length
  120 mm


ausgezogene Länge:
length max.

  160 mm
gedrückte Länge:
length min.
  40 mm

Faltenanzahl:
No. of convolutions
  15

Materialstärke:
Material thickness
  1 mm

Material   42 CR 764

Quantità Prezzo
5 37,35 € tasse incluse
20 30,83 € tasse incluse
50 25,79 € tasse incluse
100 25,79 € tasse incluse

Soffietto V6-00236 (V6-236)

manicotto di tenuta a soffietto

Materiale: 42 CR 764

Part-No.  426319

Type      V6 00236

Anschluss1:
Connection1-Ø
  20 mm

Anschluss2:
Connection2:-Ø
  20 mm

kleinster InnenØ:
smallest inside-Ø
  24 mm

groesster AussenØ
largest outside-Ø
  35 mm

Herstelllänge:
manufactured length
  120 mm


ausgezogene Länge:
length max.

  160 mm
gedrückte Länge:
length min.
  40 mm

Faltenanzahl:
No. of convolutions
  15

Materialstärke:
Material thickness
  1 mm

Material   42 CR 764
Material
42 CR 764
Bauform Dichtung
V6-00236
Gestauchte Länge Lmin.
40 mm
Gestreckte Länge lmax.
160 mm
kleinster innen-D.
24 mm
groesster Aussend.
35 mm
Anschluss1
20 mm
Anschluss2
20 mm
Herstellänge
120 mm
Faltenanzahl
15
Materialstaerke
1 mm
2013-05-01
