Soffietto V6-00332

454470
Ultimi articoli in magazzino
60,82 € tasse incluse
Lieferzeit: 1-2 Werktage

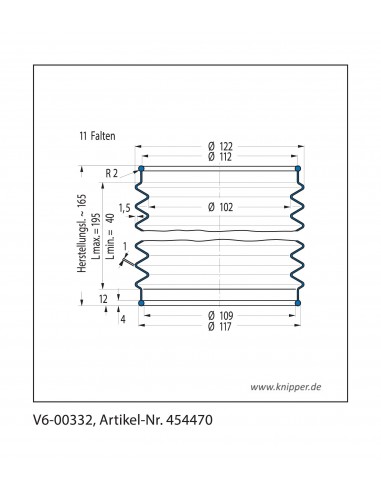

Soffietto V6-00332 (V6-332)

manicotto di tenuta a soffietto

Materiale: 42 CR 764

Part-No.  454470

Type      V6 00332

Anschluss1:
Connection1-Ø
  109 mm

Anschluss2:
Connection2:-Ø
  109 mm

kleinster InnenØ:
smallest inside-Ø
  102 mm

groesster AussenØ
largest outside-Ø
  122 mm

Herstelllänge:
manufactured length
  165 mm


ausgezogene Länge:
length max.

  95 mm
gedrückte Länge:
length min.
  40 mm

Faltenanzahl:
No. of convolutions
  11

Materialstärke:
Material thickness
  1,50 mm

Material   42 CR 764

Quantità Prezzo
5 48,92 € tasse incluse
20 47,59 € tasse incluse
50 39,80 € tasse incluse
100 39,80 € tasse incluse

Soffietto V6-00332 (V6-332)

manicotto di tenuta a soffietto

Materiale: 42 CR 764

Part-No.  454470

Type      V6 00332

Anschluss1:
Connection1-Ø
  109 mm

Anschluss2:
Connection2:-Ø
  109 mm

kleinster InnenØ:
smallest inside-Ø
  102 mm

groesster AussenØ
largest outside-Ø
  122 mm

Herstelllänge:
manufactured length
  165 mm


ausgezogene Länge:
length max.

  95 mm
gedrückte Länge:
length min.
  40 mm

Faltenanzahl:
No. of convolutions
  11

Materialstärke:
Material thickness
  1,50 mm

Material   42 CR 764
Material
42 CR 764
Bauform Dichtung
V6-00332
Gestauchte Länge Lmin.
40 mm
Gestreckte Länge lmax.
195 mm
kleinster innen-D.
102 mm
groesster Aussend.
122 mm
Anschluss1
109 mm
Anschluss2
109 mm
Herstellänge
165 mm
Faltenanzahl
11
Materialstaerke
1,50 mm
