Soffietto V6-00909

505424
Product available for orders
121,06 € tasse incluse

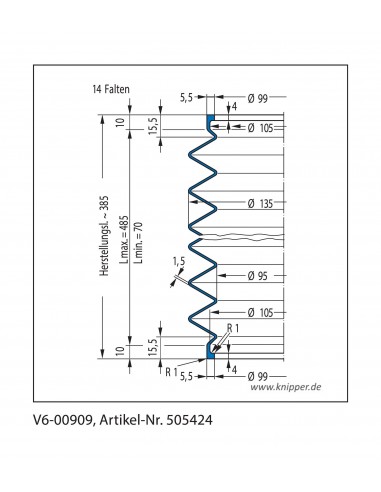

Soffietto V6-00909 (V6-909)

manicotto di tenuta a soffietto

Materiale: 50 CR 879

Part-No.  505424

Type      V6 00909

Anschluss1:
Connection1-Ø
  99 mm

Anschluss2:
Connection2:-Ø
  99 mm

kleinster InnenØ:
smallest inside-Ø
  95 mm

groesster AussenØ
largest outside-Ø
  135 mm

Herstelllänge:
manufactured length
  385 mm


ausgezogene Länge:
length max.

  485 mm
gedrückte Länge:
length min.
  70 mm

Faltenanzahl:
No. of convolutions
  14

Materialstärke:
Material thickness
  1,50 mm

Material   50 CR 879

Quantità Prezzo
5 102,52 € tasse incluse
20 94,64 € tasse incluse
50 80,86 € tasse incluse
100 72,59 € tasse incluse

Soffietto V6-00909 (V6-909)

manicotto di tenuta a soffietto

Materiale: 50 CR 879

Part-No.  505424

Type      V6 00909

Anschluss1:
Connection1-Ø
  99 mm

Anschluss2:
Connection2:-Ø
  99 mm

kleinster InnenØ:
smallest inside-Ø
  95 mm

groesster AussenØ
largest outside-Ø
  135 mm

Herstelllänge:
manufactured length
  385 mm


ausgezogene Länge:
length max.

  485 mm
gedrückte Länge:
length min.
  70 mm

Faltenanzahl:
No. of convolutions
  14

Materialstärke:
Material thickness
  1,50 mm

Material   50 CR 879





Material
50 CR 879
Bauform Dichtung
V6-00909
Gestauchte Länge Lmin.
70 mm
Gestreckte Länge lmax.
485 mm
kleinster innen-D.
95 mm
groesster Aussend.
135 mm
Anschluss1
99 mm
Anschluss2
99 mm
Herstellänge
385 mm
Faltenanzahl
14
Materialstaerke
1,50 mm
