Arolan II 6215 Stopbuspakking
€ 96,00
No tax

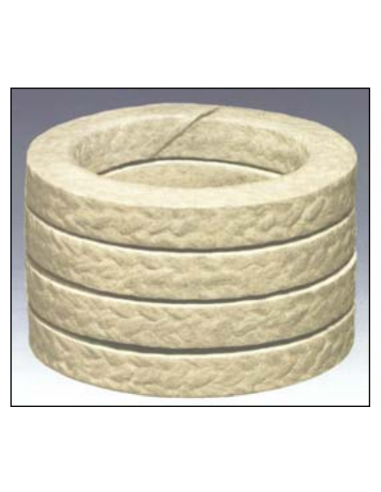

AROLAN II Universal rotary pump packing suitable for abrasive media and accommodating shaft deflection.
AROLAN II is made from highly wear-resistant aramid yarn with a special PTFE impregnation and a universally stable running-in lubricant.
Its high level of resistance to abrasion as well as to temperature and chemical fluctuations make AROLAN II a universal packing for many industry sectors.
Universal rotary pump packing suitable for abrasive media and accommodating shaft deflection
Application Limits
| P | 25 bar 1 100 bar 2* |
362 psi 1 1450 psi 2* |
| T | -50..+280(C | -58..+536(F |
| V | 26 m/s 1 | 5100 ft/min 1 |
| pH | 1..13 | 1..13 |
1 Rotary pumps 2 Valves
Media
Cold water, hot water, salt solutions, organic solvents, hydrocarbons, oils, greases, diluted acids and lyes.
| Robust and durable | Suitable for sealing against abrasive media |
| Extremely wear resistant | Very long service life |
| Very resilient and flexible | Ideal for sealing against shaft deflection |
Also available in die-formed rings and pre-cut lengths
| mm | inch | G/m | M/kg | Kg/box | Reference No | In stock |
| 3 | 1/8 | 12 | 84.2 | 1 | 24195260 | |
| 4 | 21 | 47.3 | 1 | 24181505 | ||
| 5 | 3/16 | 33 | 30.3 | 1 | 24181506 | |
| 6 | 48 | 21.0 | 1 | 24172093 | * | |
| ¼ | 54 | 18.5 | 1 | 24180316 | * | |
| 8 | 5/16 | 84 | 11.8 | 2 | 24175041 | * |
| 3/8 | 120 | 8.4 | 2 | 24175049 | * | |
| 10 | 132 | 7.6 | 2 | 24177176 | * | |
| 12 | 190 | 5.3 | 3 | 24175522 | * | |
| ½ | 213 | 4.7 | 3 | 24175051 | * | |
| 14 | 9/16 | 259 | 3.9 | 3 | 24170381 | * |
| 15 | 297 | 3.4 | 3 | 24175638 | ||
| 16 | 5/8 | 338 | 3.0 | 3 | 24181718 | * |
| 18 | 428 | 2.3 | 3 | 24180328 | ||
| 19 | ¾ | 477 | 2.1 | 3 | 24178406 | * |
| 20 | 528 | 1.9 | 5 | 24174987 | * | |
| 22 | 7/8 | 639 | 1.6 | 5 | 24188238 | |
| 25 | 1 | 825 | 1.2 | 10 | 24181719 | * |
24177176
Datasheet
- Temp. min.
- -50
- Temp. max.
- 280
- pH-Wert min.
- pH 1
- pH-Wert max.
- pH 13
AROLAN II Universal rotary pump packing suitable for abrasive media and accommodating shaft deflection.
AROLAN II is made from highly wear-resistant aramid yarn with a special PTFE impregnation and a universally stable running-in lubricant.
Its high level of resistance to abrasion as well as to temperature and chemical fluctuations make AROLAN II a universal packing for many industry sectors.
