Uniflex 6588 Stopbuspakking Merkel-Simrit Pumpenpackungen
Uniflex 6588 Stopbuspakking Merkel-Simrit Pumpenpackungen
Uniflex 6588 Stopbuspakking Merkel-Simrit Pumpenpackungen
Uniflex 6588 Stopbuspakking Merkel-Simrit Pumpenpackungen

Uniflex 6588 Stopbuspakking

24374618
Lieferzeit: 3-4 Wochen
 240,00 tax incl.
€ 240,00 tax excl.
(Prijs voor een minimale hoeveelheid van 2)

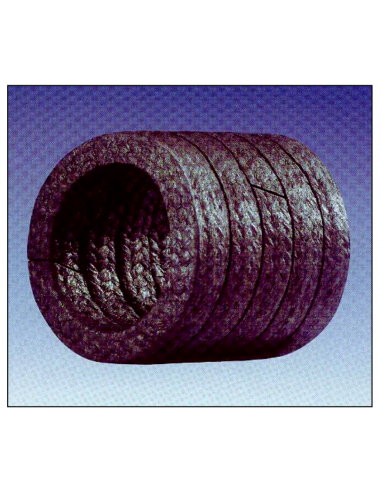

UNIFLEX 6588 The ideal general-purpose pump packing.

UNIFLEX is manufactured from a carbonised yarn with a special PTFE-graphite impregnation. The packing is very flexible and extrusion-resistant. The impregnation maintains an excellent bond to the yarn over the complete life of the packing.

The thermal and volumetric stability provides superior sealing performance with minimal gland compression. These features make UNIFLEX suitable for use in “dryrunning” applications.

Packungsquerschnitt

Minimale afname van het product is 2.

The ideal general-purpose pump packing

Application Limits
P  25 bar  362 psi
T -40.. +280(C             -58..+536(F
V  25 m/s  5000 ft/min
pH       1..13  1..13



Media

Cold water, hot water, steam, aqueous solutions, diluted acids and alkalis.

High carbon content  Very good heat dissipation
Strong, flexible yarn  Extrusion resistant and good  resistance
Excellent long term bond between
impregnation and yarn
 Excellent pressure resistance



Minimum selling unit is 1 box Shown prices are per kilogram
Different diameters lead to different weight per box, please check below:

mm inch G/m M/kg Kg/box Reference no  In stock
5 1/8 33 30.30 1 00529561
6   48 21.04 1 24374614
  ¼ 53 18.79 1 24374615
8 5/16 84 11.84 2 24374616 *
  3/8 117 8.57 2 24374617
10   132 7.58 2 24374618 *
12   190 5.26 3 24374619 *
  ½ 213 4.70 3 24374620
14 9/16 259 3.87 3 24374621
15   297 3.37 3 24374622
16 5/8 338 2.96 3 24374623 *
18   428 2.34 3 24374624
20 ¾ 528 1.89 5 24374626
25 1 825 1.21 10 24374627 *
Einsatz für Ventile
nein
Temp. min.
-50
Temp. max.
280
pH-Wert min.
pH 1
pH-Wert max.
pH 13
