Carbosteam 6550

6550
Product available for orders
2 390,00 € tva incluse

(Prix pour quantité minimale de 10)

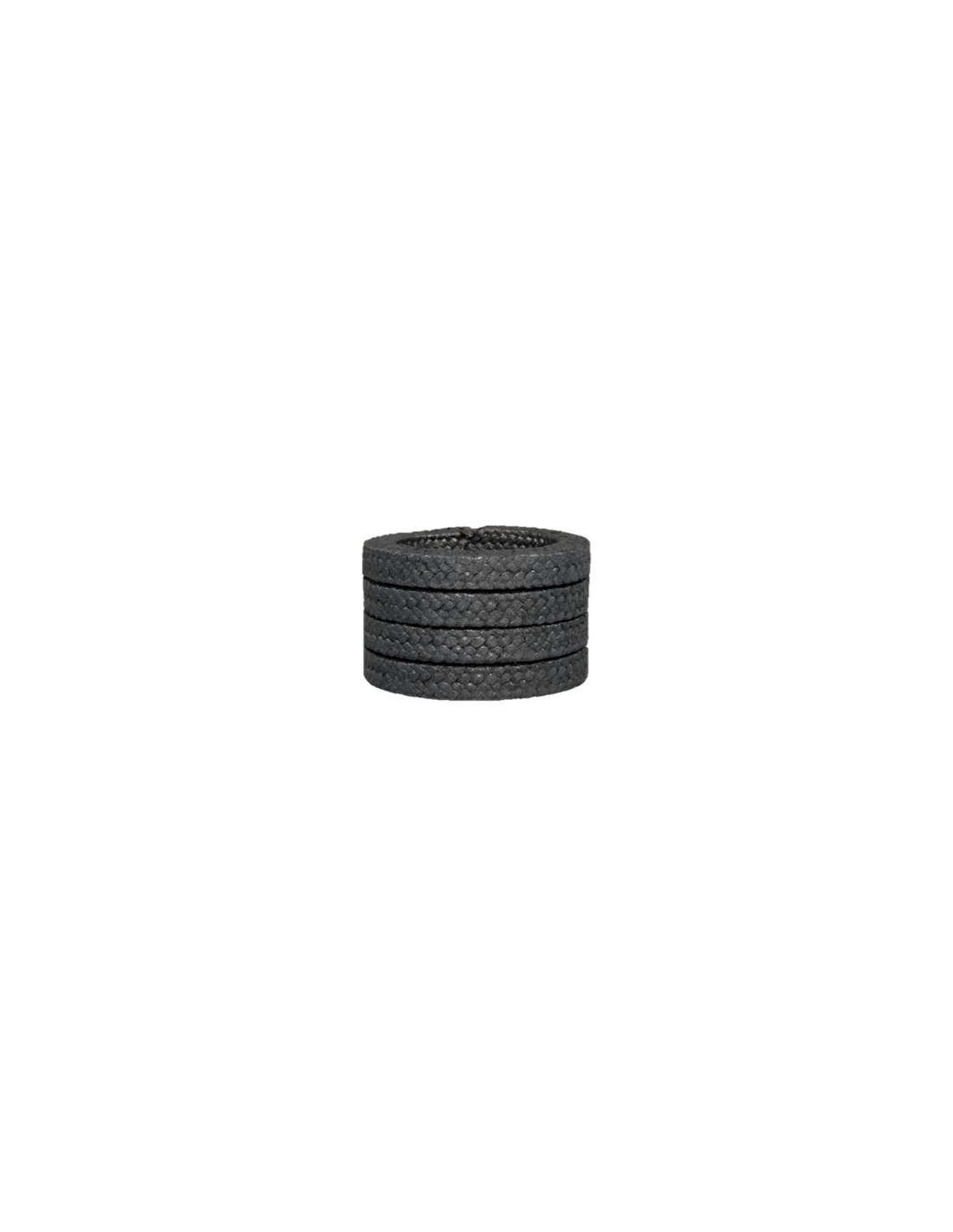

CARBOSTEAM 6550 High temperature valve packing

CARBOSTEAM is made of flexible carbon yarns and a special graphite-based impregnation. Thanks to its excellent thermal stability CARBOSTEAM is widely used in high temperature steam applications.

Because of its high pressure and extrusion resistance CARBOSTEAM is ideally used as end rings for GRAFIFLEX.

Packungsquerschnitt

La quantité minimale pour pouvoir commander ce produit est 10.

CARBOSTEAM 6550  High temperature valve packing

Application Limits
P          300 bar
 4350 psi
T
30°..+400°  C 1
-30°..+550°  C 2
 -22°..+750°F 1
-30°..+1022° F 2
pH  0...14  0...14

1 most media and air               2  steam

Media
Hot Water, hot air, steam, acids and alkalies.

Exceptions

Heavily oxidizing acids such as hot sulphuric acid and nitric acid.

 Thermally stable carbon yarn and impregnation    Very high temperature resistance
 High graphite content in impregnation  Reduced friction, longer service life
 High strength carbon yarns  Used as anti-extrusion and wiper end rings with GRAFIFLEX or G-SPEZIAL

Also available in pre-cut lengths

mm inch G/m M/kg Kg/box Reference no  In stock
3 1/8 10 101.01 1 24199354
4   18 56.82 1 24196161
5 3/16 28 36.36 1 24191670
6   40 25.25 1 24196568
  ¼ 45 22.2 1 24199357
8 5/16 70 14.20 2 24191671 *
  3/8 89 11.22 2 24199361
10   110 9.09 2 24191672 *
12   158 6.31 3 24190391 *
  ½ 177 5.60 3 24199363
14 9/16 216 4.64 3 24197176
15   248 4.04 3 24216138
16 5/8 282 3.55 3 24195492 *
18   356 2.81 3 24199366
19 ¾ 397 2.52 3 24315375
20   440 2.27 5 24199368
22 7/8 532 1.92 5 24290307
25 1 688 1.45 10 24199373



Einsatz für Ventile
ja
Temp. min.
-30
Temp. max.
550
pH-Wert min.
pH 0
pH-Wert max.
pH 14
